Quality panels for profitable solutions

Minetec customers rely on our company to manufacture high quality control and distribution panels. We offer profitable products manufactured according to your specifications.

    Main circuit breaker panel

  • 48 @ 250 V cc, 100 to 800A
  • 12 to 80 circuits, 1Ø, 3W wires

    Secondary power supply with main terminals

  • Circuit breakers
  • 1 pole, 15 to 70 A
  • 2 poles, 15 to 200 A

*The nominal value for series protection is indicated on all panels.

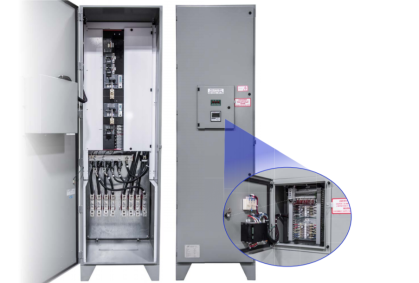

DC distribution centre (48 VDC or 125 VDC) for industrial use

  • Fully factory assembled and certified compliant with current standards
  • Connection of all existing circuit breakers on IP20 terminals through side troughs
  • Possibility to safely connect a new load directly into the troughs without having to turn off the panel

Zero Energy® finger-safe (IP 20B) panels for safe distribution

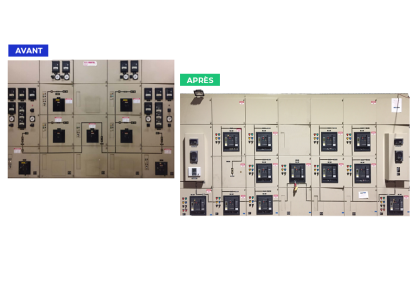

Expenses associated with outdated infrastructure require control to extend the life of your equipment. We’re here to help you modernize your electrical distribution system while optimizing costs and extending the life of your facility.

Modernization of low and medium voltage switchboards and switchgear

Available options :

  • Fuse or circuit breaker disconnector
  • Thermographic window
  • Custom connections
  • 30 A to 800 A capacity
  • CSA certification included
  • Adapts to systems from all main electrical manufacturers

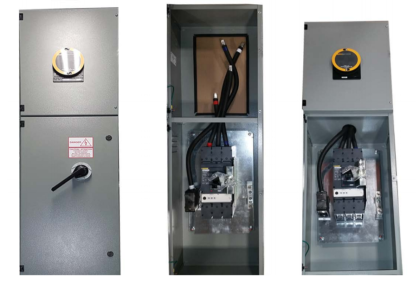

Bus plugs for 600V shielded busbars for easy maintenance

CSA-certified electrical panels, dedicated to applications requiring temporary power supply

  • This safe and easy-to-handle assembly is equipped with a disconnecting means and a visual voltage presence indicator that will allow operators to quickly diagnose its condition
  • Available up to 400 A with several options

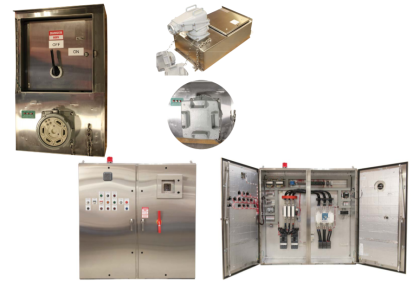

Marine and rail power supply, for certified quality products

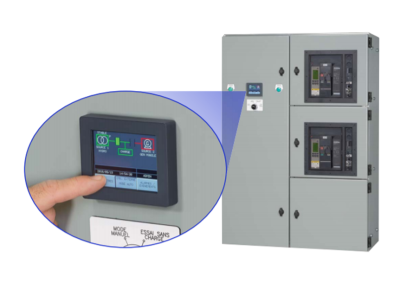

Minetec’s transfer switch controller is self-contained and fully manages the activation and operation. Activation is started when the automatic controller detects a power source unavailability or loss, followed by the operation of the switching mechanism.

Automatic TCTX source change-over controller for a flexible solution

View More
prod7

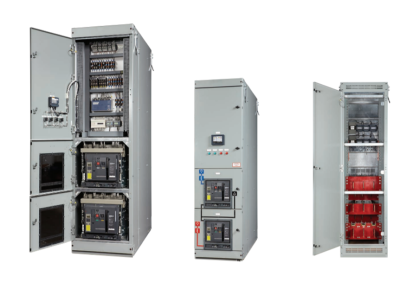

Installation of source change-over facilities to ensure continuity of power supply to certain priority receivers for safety reasons or to maintain a production cycle. Start-up is controlled by a voluntary command or a failure of the main power supply.

Automatic transfer switches adapted to your needs

prod8

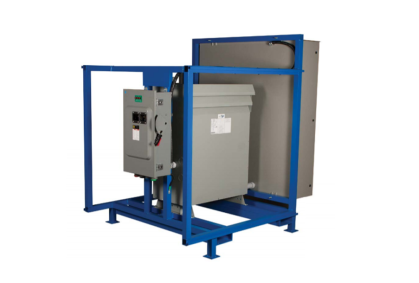

More than 70 portable power systems were deployed for the Montréal Grand Prix. Each system was independent and entirely protected against ground faults, thus ensuring user protection regardless of weather conditions. An anti-theft device was also incorporated into the design.

Temporary distribution centre for your occasional needs

prod9

We manufacture easy-to-use, ready-to-deploy temporary electrical equipment for the following applications :

  • Diesel and natural gas generators
  • Substations
  • Low and medium voltage transformers
  • Distribution
  • Protection
  • Transfer switches
  • Cables
  • Charging racks

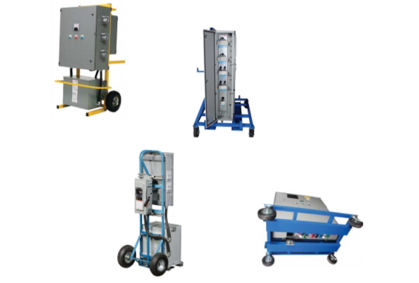

Completely secure, portable distribution centre adapted to your actual needs

prod10

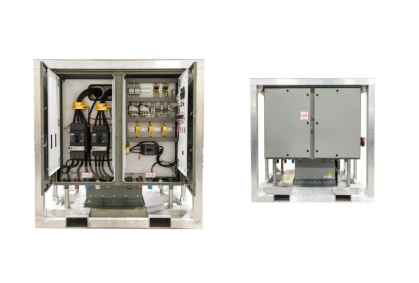

Do you need power for your temporary events? Our products adapt to the primary voltages of different countries. For example, here is a portable unit used during a Cirque du Soleil event.

Portable units for powering temporary events

prod11

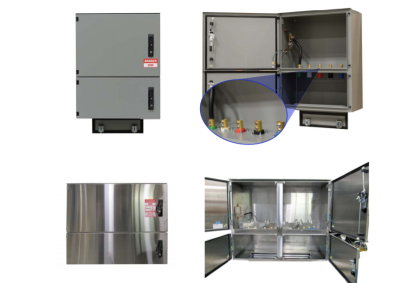

Available options :

  • Available from 400 A to 2400 A
  • NEMA12 and NEMA 4X
  • With or without copper bar

CAMLOCK mobile generator junction boxes adapted to the required capacity

prod12

The use of Minetec variable speed drives offer several advantages :

  • Soft starting of motors reducing network voltage drops and limiting starting currents
  • Improved power factor
  • Increased accuracy of speed control
  • Service life extension of powered equipment
  • Decreased electricity consumption

1 to 1200 HP variable speed drives for a low-voltage, high-powered power source

prod13

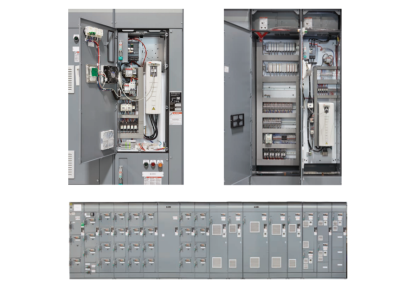

  • Intelligent motor starters
  • Integrated PLC, soft starters and variable speed drives of all brands
  • Wired and/or communication I/O
  • Electronic AC circuit breaker communication
  • Customer measurement
  • Intercell wiring
  • Overall engineering
  • Configuration
  • Commissioning

Highly integrated and intelligent motor control centre

prod14

Extend the life of your existing motor control centre without the hassle, increased costs and significant downtime associated with modifying existing structures and rewiring. Replacement units connect directly to your existing MCC and have an expected life of over 20 years.

Integrated control and automation equipment for efficient solutions

prod15

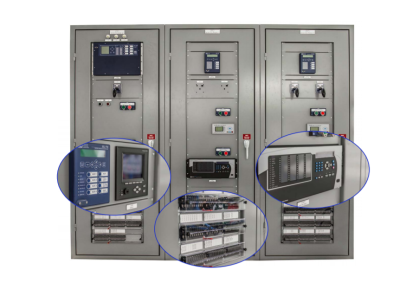

Minetec carries out the assembly and wiring of the control and protection panels in its workshop of experienced technicians. These panels contain all the control and protection components necessary for operation in substations, power plants and large industry.

Control and protection panels, a solution that requires a great deal of expertise

prod16

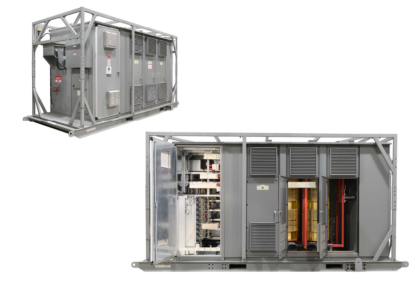

Portable power solutions are ideal for urgent network connection, renovation or expansion in harsh environments. Their mobile and modular design enables them to meet the challenges of tight construction deadlines, natural disasters and operational restrictions.

Medium voltage mobile station with optimal 2000 kVA transformer

prod17

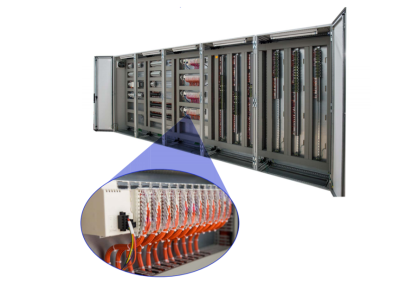

Fully factory-tested panel shipped to the Semafo Mine in Africa in export packaging

Custom-made programmable logic controller (PLC) panels for the mining industry

prod18

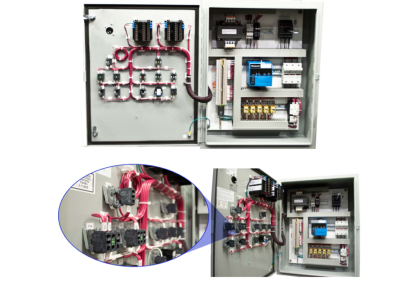

The panel contains a wired integral control according to CSA/UL combustion standards. It also includes motor starters, control transformer, maximum temperature limit protection, combustion system control and interposing relays.

Panel for controlling gas appliances to ensure combustion system safety.

We would be happy to help you with starters, variable frequency boxes, control panels or distribution panels tailored to your needs.

Request a bid
